Northamptonshire County Council produced a series of illustrated pages showing the different methods of shoe construction for use by students at the Boot and Shoe School in Rushden and other centres in the county. There were a number of different methods for the students to master:-
|
Illustration of the cemented method of shoe construction
|
|
The different layers of the shoe in the cemented method are:
Insole
Littleway staples holding upper to insole
Outsole attached by adhesive
|
Illustration of the Goodyear Welted method of shoe construction
|
|
The layers of the shoe in the Goodyear welted method are:
Insole (note perfectly clear surface)
Horizontal chainstitch seam uniting welt, upper and insole
Welt
Vertical lockstitch seam securing outsole to welt
Outsole
Bottom filling
|

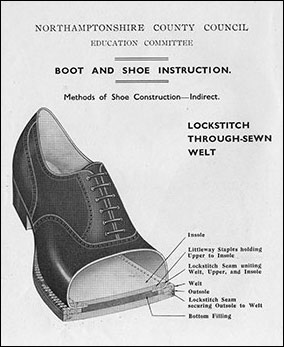

Illustration of the lockstitch through-sewn welt method of shoe construction
|
|
The layers of the shoe in the lockstitch through-sewn welt method are:
Insole
Littleway staples holding upper to insole
Lockstitch seam uniting welt, upper and insole
Welt
Outsole
Lockstitch seam securing outsole to welt
Bottom filling
|
Illustration of the Littleway lockstitch method of shoe construction
|
|
The layers of the shoe in the Littleway lockstitch method are:
Insole
Littleway staples holding upper to insole
Lockstitch seam uniting outsole, upper and insole
Outsole
Bottom filling
|
Illustration of the Littleway lasted machine sewn method of shoe construction
|
|
The layers of the shoe in the machine sewn method of construction are:
Insole
Chainstitch seam uniting outsole, upper and insole
Littleway staples holding upper to insole
Outsole
Bottom filling
|
Illustration of the machine sewn method of shoe contruction
|
|
The layers of the shoe in the machine sewn tack lasted method of construction are:
Insole
Chainstitch seam uniting outsole, upper and insole
Lasting tacks holding upper to insole
Outsole
Bottom filling
|

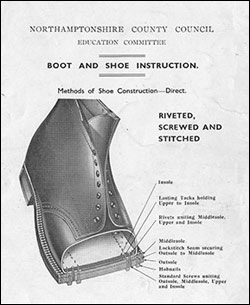

Illustration of the riveted, screwed and stitched method of shoe construction
|
|
The layers in the riveted, screwed and stitched method of shoe construction are:
Insole
Lasting tacks holding upper to insole
Rivets uniting middlesole, upper and insole
Middlesole
Lockstitch seam securing outsole to middlesole
Outsole
Hobnails
Standard screws uniting outsole, middlesole, upper and insole
|
Illustration of the riveted method of shoe construction
|
|
The layers in the riveted method of shoe construction are:
Insole
Lasting tacks holding upper to insole
Outsole
Rivets uniting outsole, upper and insole
Bottom filling
|
Illustration of the Silhouwelt method of shoe construction
|
|
The layers in the silhouwelt method of shoe construction are:
Insole (note perfectly clear surface)
Horizontal chainstitch seam uniting welt, upper and insole
Lightweight welt
Outsole attached by adhesive
Bottom filling
|
Illustration of the stapled welt method of shoe construction
|
|
The layers in the stapled welt method of shoe construction are:
Insole
Lasting tacks holding upper to insole
Staples and thread uniting welt, upper and insole
Welt
Outsole
Lockstitch seam securing outsole to welt
Bottom filling
|

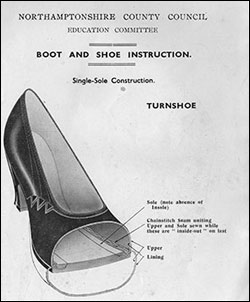

Illustration of the turnshoe method of shoe construction
|
|
The layers in the turnshoe method of shoe construction are:
Sole (Note absence of insole)
Chainstitch seam uniting upper and Sole sewn while these are inside out on last
Upper
Lining
|
Illustration of the Veldtschoen method of shoe construction
|
|
The layers in the veldtschoen method of shoe construction are:
Upper
Rand
Lockstitch seam uniting sole, upper and rand
Sole (note absence of insole)
|
